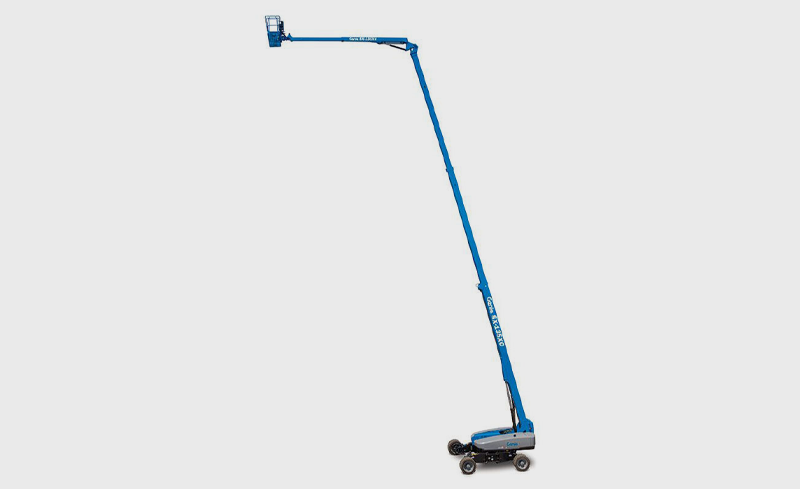

SX-135XC
Overview
- Industry-leading 90 ft (27.43 m) of maximum outreach
- Increased range of motion with 18 – 30 ft (5.48 – 9.14 m) Telescoping Jib-Extend™ and 125° of jib articulation
- Extended reach out and down capability with 19 ft 8 in (5.99 m) of reach below grade
- Mini XChassis™ design for compact transportation and work in confined areas
- 660 lb/1,000 lb (300/454 kg)** dual platform capacity with a smooth envelope
- Quick boom up time at 150 seconds
- Commonality in design and accessories with other Genie booms for easy parts stocking
Specification
| Working Height* | 141 ft (43.15 m) |
| Platform Height | 135 ft (41.15 m) |
| Horizontal Reach | 90 ft (27.43 m) |
| Below Ground Reach | 19 ft 8 in (5.99 m) |
| Lift Capacity | 660/1000 lbs (300/454 kg)** |
| * Imperial measurements of working height add 6 ft to platform height. The metric equivalent adds 2 m to platform height. | |
| ** Maximum outreach zone / maximum capacity zone. |
